Why Choose a LED Fresnel Light for Stage Lighting?

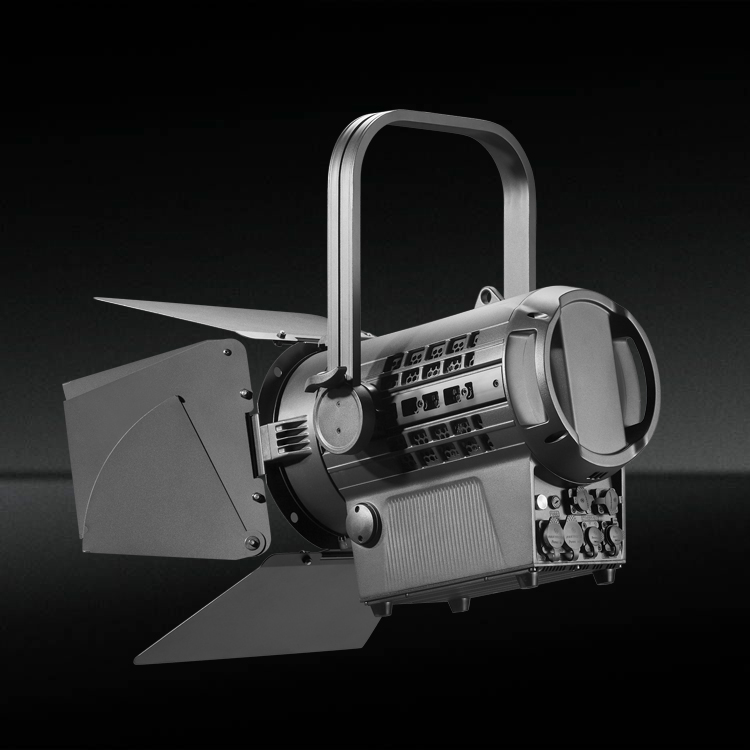

The transition from legacy tungsten fixtures to LED technology is no longer a future consideration for theatrical, educational, and live event spaces—it is an immediate operational necessity. Technical directors and lighting designers must balance the demand for the classic, soft-edged wash of traditional Fresnels with modern requirements for power efficiency, thermal management, and advanced DMX control, without sacrificing dimming quality. Evaluating whether a Led Fresnel Light is the correct investment requires looking past basic output claims and rigorously analyzing dimming curves, color rendering, and infrastructure compatibility to ensure it meets professional stage standards. Upgrading a lighting rig demands a thorough understanding of optical physics, data distribution, and rigging safety. You need fixtures that integrate seamlessly into existing workflows while providing the flexibility required for diverse productions. This evaluation process separates professional-grade equipment from consumer-level units that fail under the rigorous demands of live performance.

• LED Fresnels successfully replicate the soft, flattering wash of traditional fixtures while drastically reducing power consumption and venue HVAC loads.

• Evaluating a stage Fresnel light requires strict attention to low-end dimming curves and color rendering indices (CRI/TLCI) to avoid visible stepping and color shift on skin tones.

• Budget efficiency requires avoiding "feature creep"—selecting the appropriate color engine and zoom type can prevent doubling or tripling fixture costs unnecessarily.

• Implementation risks—such as acoustic interference from cooling fans and increased DMX channel footprints—must be mitigated during the specification phase.

The Role of the Fresnel in Modern Stage Lighting

Defining the Fresnel Wash and Optical Physics

The stepped lens design defines the optical characteristics of this fixture category. Originally developed for lighthouses, the concentric rings of the lens refract light to produce a soft, even field with a rapid, flattering fall-off. This specific optical physics allows lighting designers to create flexible illumination that supports mood and character focus without drawing the audience's attention to the light source itself. When you light a drama, you want the actors to pop from the background, but you do not want hard shadows distracting from the performance. The soft edge allows multiple fixtures to overlap seamlessly, creating a continuous wash across the stage deck.

Primary stage applications rely heavily on this diffuse output. You will deploy these units for downlighting, backlighting, and general stage washes where hard edges are undesirable. When lighting a thrust stage or a theater-in-the-round, the rapid fall-off prevents light from spilling into the audience seating area. The ability to control the beam spread mechanically while maintaining a soft edge makes this fixture type indispensable for repertory theaters that change plots frequently.

LED Fresnel vs. PAR vs. Ellipsoidal (Profile)

Establishing comparative success criteria for beam control dictates fixture selection for specific rigging positions. You choose a Fresnel over a PAR because it offers superior beam shaping via barn doors and a significantly smoother field. PAR cans produce an oval, uneven beam that is difficult to control and often results in hot spots. You choose it over an Ellipsoidal (profile) when you need a softer edge, a wider wash, and faster focus times. Ellipsoidals are designed for sharp pattern projection and precise shutter cuts, which makes them poorly suited for blending large areas of the stage.

Preventing scene hotspots requires careful fixture placement and beam blending. An LED fixture with a stepped lens outperforms other types in blending multiple light sources across a stage. It avoids the harsh overlapping lines and dark spots common with PAR cans. When you overlap three soft-edged beams, the light adds together smoothly, creating a uniform wash that looks natural on camera and to the naked eye.

Retrofitting Legacy Systems: Replacing Border and Strip Lights

Upgrading older venues presents distinct engineering challenges. Many theaters built decades ago still rely on outdated, multi-color strip lights or border lights for overhead illumination. These legacy systems offer limited control, poor color mixing, and massive power consumption. They often produce uneven light distribution, leaving dark voids between the colored lamps.

A strategic layout of modern stage Fresnel light fixtures provides superior downlighting and deeper color coverage than legacy strip systems. By replacing a continuous row of strip lights with individual soft-edged fixtures, you gain the ability to isolate specific zones on the stage. This allows for dynamic color shifts and precise isolation that older systems simply cannot achieve. You also eliminate the need to constantly swap out burnt-out colored gels.

Technical Evaluation Criteria for Stage Lighting

Dimming Curves and Low-End Resolution

The primary failure point of inferior LED fixtures is poor low-end dimming. Visible stepping or popping at the bottom 10% of the dimming range breaks the immersion of a slow theatrical fade. When a director calls for a 30-second fade to black, the lights must dim smoothly all the way to zero. If the diodes snap off at 5% intensity, the audience notices the technical flaw immediately.

Evaluating the necessity of 16-bit dimming capabilities is mandatory for theatrical applications. 16-bit resolution provides 65,536 steps of control, compared to the 256 steps found in standard 8-bit systems. This high resolution eliminates visible stepping. Furthermore, selectable dimming curves (linear, square law, S-curve) allow the new fixtures to match legacy tungsten fade-outs seamlessly. A square law curve, for example, mimics the thermal lag of a halogen filament, making mixed rigs look cohesive during transitions.

Color Rendering and Temperature Consistency

You must move beyond basic RGBW marketing claims to evaluate CRI, TLCI, and TM-30 scores. Focus specifically on R9 (red) and R15 (skin tone) values. High R9 values are required for accurate skin tones, costumes, and natural set piece illumination. A fixture with a high overall CRI but a low R9 value will make actors look sickly and wash out red fabrics.

Compare the operational trade-offs between different color engines. Fixed color temperature engines (Daylight or Tungsten) offer maximum output for specific needs, such as front light. Variable white engines provide flexibility for broadcast and corporate events where matching ambient light is necessary. Full-color mixing arrays (like RGBALC) offer unlimited creative potential but often sacrifice total white-light output compared to a dedicated white LED engine.

Beam Angle Range, Zoom Mechanisms, and Accessories

Mechanical reliability of the internal sled mechanism is a major factor in fixture longevity. The standard spot-to-flood ratio for a versatile unit is typically 15° to 60°. This range allows the unit to serve as both a tight, punchy backlight and a wide, diffuse stage wash. The internal mechanics must move smoothly without binding, even after years of exposure to theatrical haze and dust.

Compare the implementation of manual zoom versus motorized DMX zoom. Manual zoom is cost-effective and traditional, suitable for fixtures rigged on accessible catwalks or floor stands. Motorized DMX zoom is necessary for inaccessible rigging positions, such as over-stage electrics that require a lift to reach. Accessory integration is equally important. Assess compatibility with traditional beam-shaping accessories like barn doors, snoots, and gel frames. The barn doors must cut the beam cleanly without causing light spill or severe color fringing at the edges.

Advanced Control and Network Integration

DMX512 and RDM Protocols

Modern stage lighting relies entirely on digital control networks. DMX512 remains the standard protocol for transmitting intensity, color, and position data from the console to the fixtures. However, managing a large rig of multi-parameter fixtures requires robust data distribution. Each full-color fixture consumes multiple DMX channels, quickly exhausting standard 512-channel universes.

Remote Device Management (RDM) is a required feature for professional installations. RDM allows bidirectional communication over standard DMX lines. This means the lighting console can read the fixture's temperature, change its DMX address, and adjust its operating mode remotely. This eliminates the need for technicians to climb ladders just to change a menu setting on a rigged fixture.

Network Architecture: Art-Net and sACN

As channel counts increase, traditional 5-pin DMX cables become insufficient for facility-wide distribution. Theaters now utilize Ethernet-based protocols like Art-Net and sACN to transmit dozens of DMX universes over a single network cable. These protocols route data from the console to network nodes located on the rigging pipes, which then convert the signal back to standard DMX for the fixtures.

When specifying new equipment, verify that the venue's network switches support multicast traffic, which is required for sACN. Improperly configured networks will experience data collisions, resulting in flickering lights or delayed response times during fast cues. Upgrading the data infrastructure is often a prerequisite for installing advanced lighting technology.

Implementation Risks and Mitigation Strategies

Acoustic Interference and Thermal Management

Active cooling requirements in high-output fixtures introduce acoustic risks. Internal heat sinks and cooling fans are necessary to prevent the diodes from overheating and degrading. However, fan noise can disrupt quiet theatrical moments, acoustic musical performances, or broadcast audio recording.

Mitigate this risk by specifying fixtures with intelligent fan control. Look for units that offer silent modes, where the fan speed is capped, or variable modes that adjust based on internal thermals. Passive convection cooling is ideal for intimate spaces, but it requires massive external heat sinks, resulting in significantly heavier and bulkier fixture housings.

DMX Infrastructure and Channel Footprint

The increased DMX channel requirements for multi-color engines compared to single-channel traditional dimmers can overwhelm older control systems. A single full-color unit might require 15 channels for complete control over intensity, 16-bit color mixing, zoom, and strobe functions. Replacing 20 traditional lights with 20 advanced units jumps the channel count from 20 to 300.

Audit existing lighting consoles, opto-splitters, and network nodes to ensure they can handle the increased data load and universe counts. You may need to upgrade the console's output capacity or install additional DMX splitters to distribute the signal reliably across the electrics.

Weight and Rigging Considerations

Account for the heavier weight of modern fixtures compared to empty tungsten housings. The inclusion of internal heat sinks, onboard power supplies, and complex optical arrays adds significant mass. A traditional 6-inch fixture might weigh 10 pounds, while its modern equivalent could weigh 25 pounds.

Verify the load capacities of older lighting pipes, grids, and motorized hoists before executing a 1-to-1 fixture replacement. Distribute the weight evenly across the rigging system. Always use rated safety cables attached to a structural point on the fixture, bypassing the yoke, to secure the unit to the pipe.

Conclusion

An LED fixture with a stepped lens is the industry standard for stage washes, provided the chosen unit meets strict theatrical requirements for dimming resolution and color accuracy. You must prioritize fixtures based on acoustic requirements first, followed by color engine needs, and finally output equivalence. Proper implementation requires auditing your existing infrastructure to handle increased data loads and rigging weights.

1. Audit your venue's current DMX universe capacity and network node distribution before purchasing multi-channel fixtures.

2. Verify the safe working load limits of your rigging pipes and motorized hoists to accommodate the heavier fixture weights.

3. Request a physical demo unit to test low-end dimming curves and fan noise levels in your actual acoustic environment.

4. Test barn door cuts and shadow quality on set pieces to ensure no color fringing occurs at the beam edges.

5. Select the color engine type based strictly on your primary production requirements to avoid paying for unused features.

FAQ

Q: What is the difference between a traditional and an LED Fresnel light?

A: A traditional fixture uses a halogen lamp and an external dimmer rack, producing significant heat and requiring frequent lamp replacements. An LED version uses light-emitting diodes, features onboard dimming, draws a fraction of the power, and often includes built-in color mixing capabilities without needing external gels.

Q: Can an LED stage Fresnel light use standard barn doors and accessories?

A: Yes. Professional fixtures are designed to accept standard accessories like barn doors, gel frames, and snoots. However, you must verify the specific frame size, as dimensions vary between manufacturers and wattage equivalents. The accessory slot must hold the items securely during movement.

Q: What wattage LED Fresnel is equivalent to a 1000W traditional tungsten fixture?

A: Generally, a 150W to 200W LED engine provides an equivalent output to a traditional 1000W tungsten halogen lamp. This ratio varies slightly based on the efficiency of the specific optical system, the beam angle setting, and the color temperature of the diodes.

Q: Do LED Fresnels require external dimmer packs?

A: No. These fixtures have internal dimming electronics. They require constant, non-dimmed power (relay power) and a DMX data connection to control intensity and other parameters directly from the lighting console. Plugging them into a traditional dimmer can destroy their internal power supplies.

Q: How do you control the beam size on an LED Fresnel?

A: Beam size is controlled by moving the LED engine closer to or further from the lens on an internal sled. This is done either manually via a rotary knob on the back of the fixture housing or remotely using a motorized DMX zoom function controlled by the console.

Q: Are high-output LED stage lights noisy?

A: They can be. High-output diodes generate heat that requires active cooling fans to prevent thermal degradation. Professional theatrical fixtures mitigate this with intelligent fan controls, silent modes, or large passive heat sinks to keep acoustic interference minimal during quiet performances.
