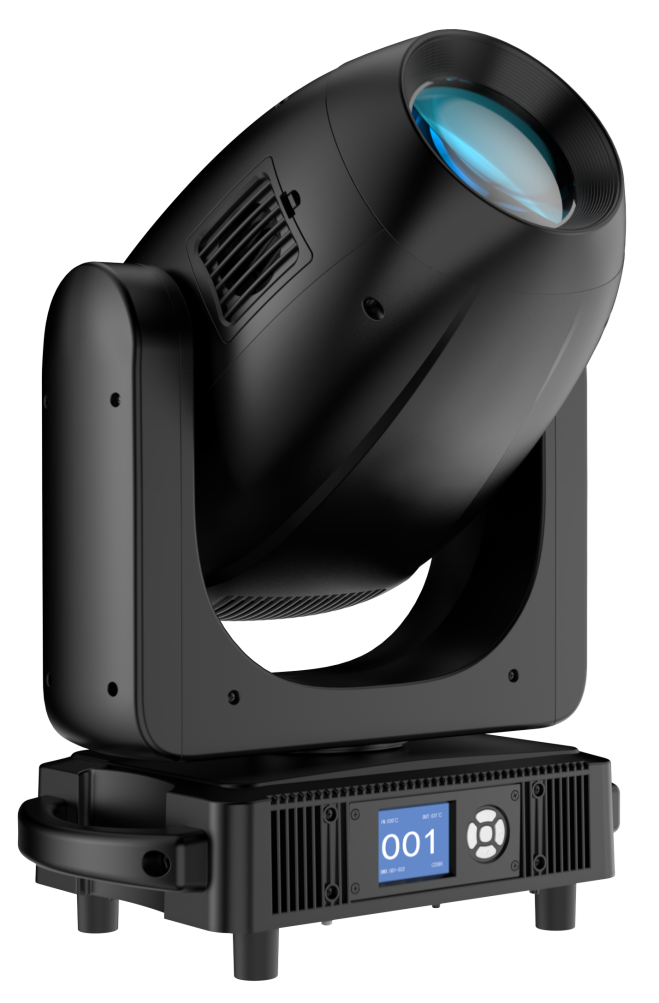

V SPOT 600
ZOOM angle : 3.8° to 50 °
Front lens diameter : 140mm
Output color temperature : 7000K
CRI : RA≥72 (High CRI filter up to 88)

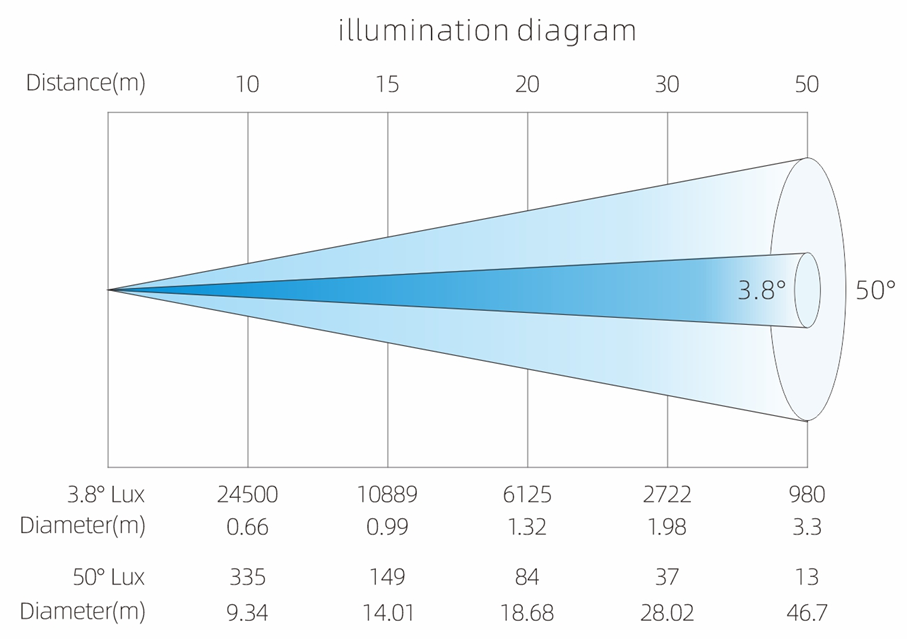

Illuminance : 24500 Lux@10M
Total lumen output : 20000Lm
LED source life expectancy : 40,000 hours
| Quantity: | |
|---|---|
OPTICAL
Light source : 520W white LED module
ZOOM angle : 3.8° to 50 °
Front lens diameter : 140mm
Output color temperature : 7000K
CRI : RA≥72 (High CRI filter up to 88)
Illuminance : 24500 Lux@10M
Total lumen output : 20000Lm
LED source life expectancy : 40,000 hours*
COLOR
C M Y : CMY infinite colour mixing
C T O : Linear CTO from 3000K to 7000K
Color wheel : 6 Color pieces + High CRI filter + Blank , can achieve bi-directional color rainbow effect,double color step gradient(liner movement), color wheel bi-directional rotation, random color mode.
GOBO

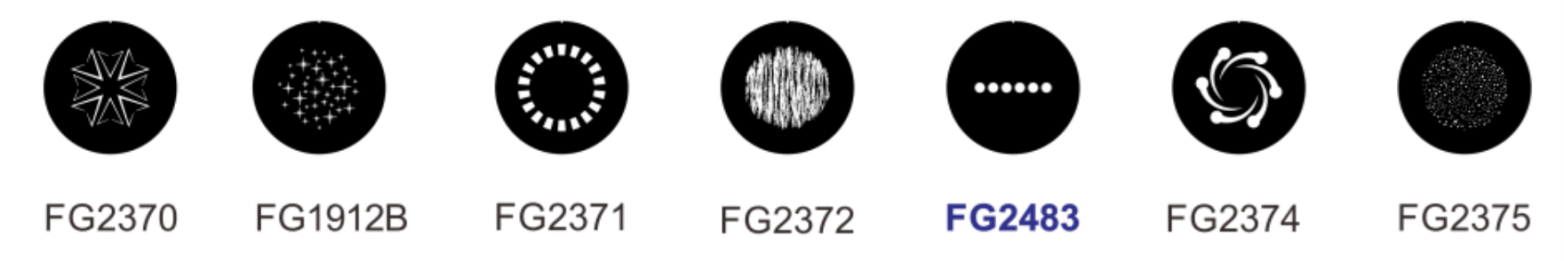

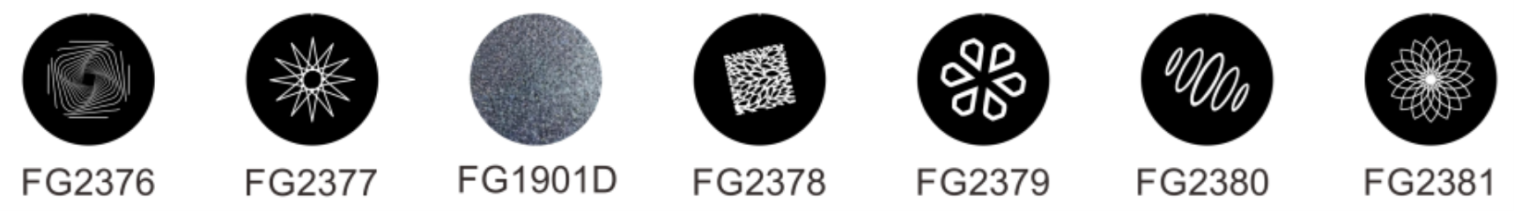

Rotation gobo wheel : 2 rotation gobo wheel ,each with 7 pcs interchangable gobo,gobo piece outer diameter φ22.9mm, gobo piece inner diameter φ15mm;
Animation wheel : 1 dynamic animation wheel -flow water effect
Framing system : 4 blade ,each blade can be eight direction and +/- 60° degree rotation
EFFECTS
Iris : Motorized with variable pulse and random effects
Strobe : Electronic pulse strobe and random strobe
Focus : Motorized focus
Dimmer : 0 to 100% linear dimmer
Prism : 4 facet prism + 4 linear prism + bidirection rotation
Frost : 2 frost system : light frost 1° and Heavy frost 20°
LED refresh rate : 1000Hz ~ 25KHz
CONTROL
Channel mode : 42CH , 54CH
Control protocol : DMX 512, RDM ,ARTNET
DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Power connector : Seetronic
Hanging system : foldable light hook
Display : LCD liquid crystal screen
Noise level control : High brightness mode，Standard mode，Silent mode
SOFTWARE
Software : Software upgrade via USB or DMX interface
temperature control : Intelligent temperature control to ensure LED life
X/Y ANGLE OF MOTION
Pan : 540° 8bit/16bit
Tilt : 270° 8bit/16bit
Reset function with automatic error correction
Fixed lock : Tilt axis lock
POWER
Voltage : AC100-240V 50/60Hz
Power : 960W
Power factor : 0.99
SIZE & WEIGHT
Housing : Engineering plastic PA66

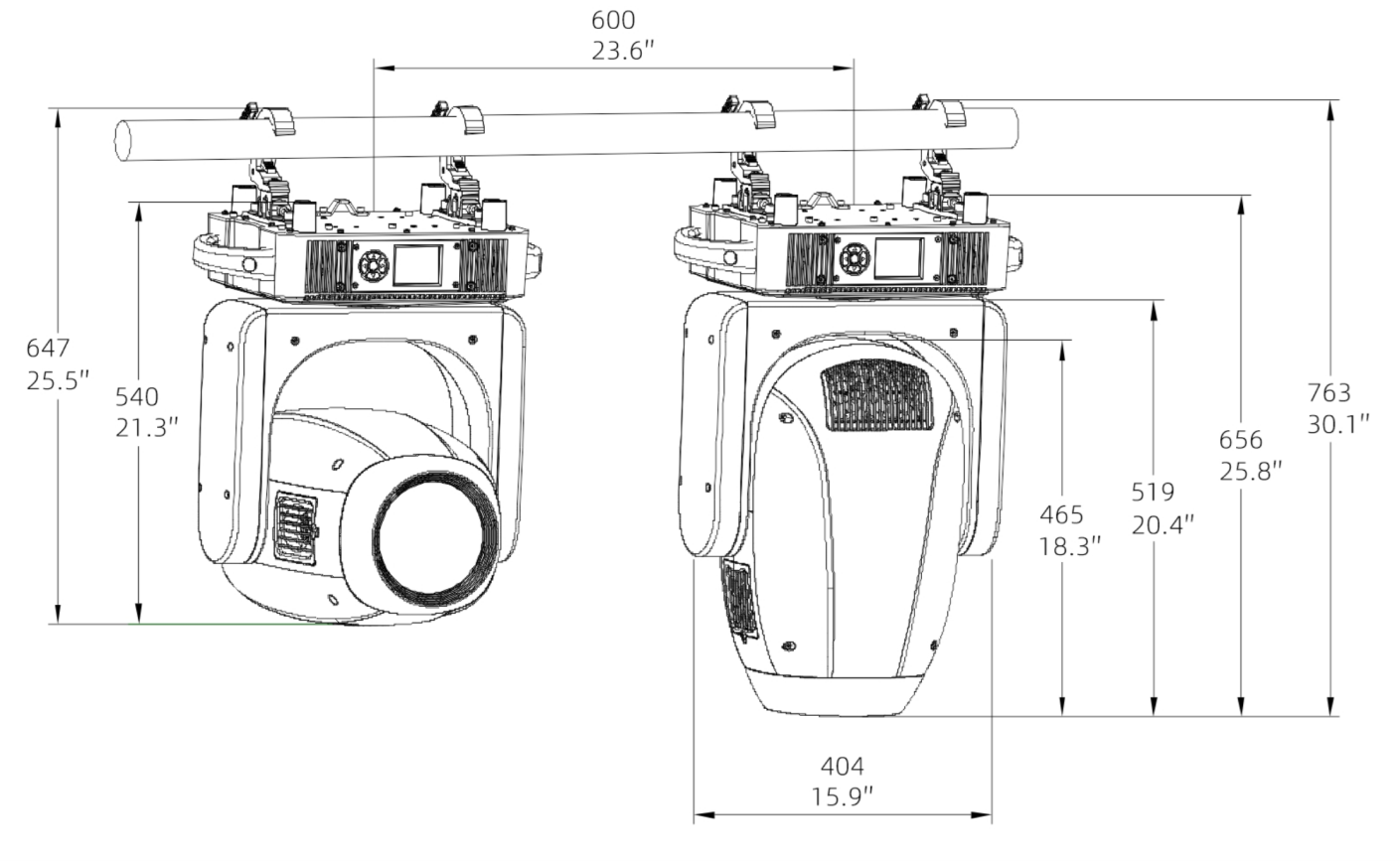

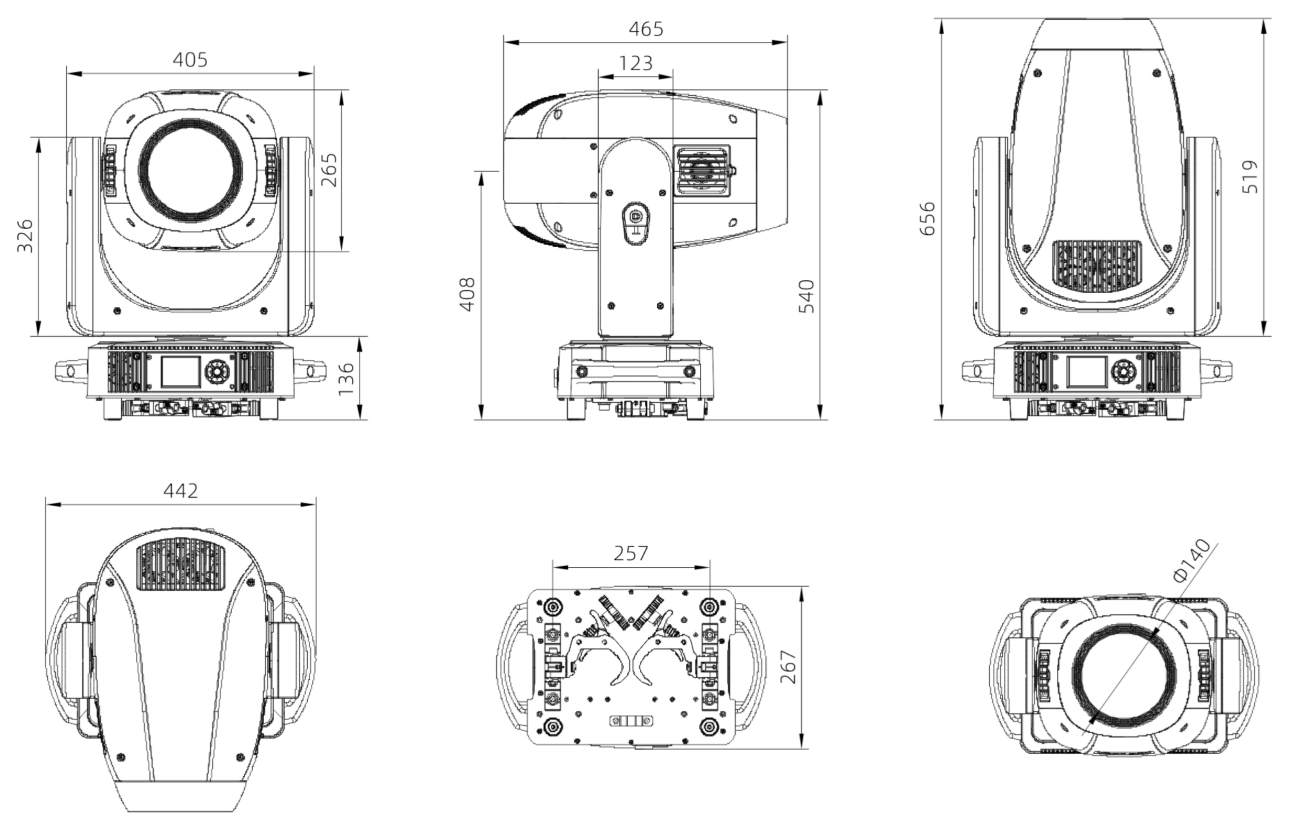

Light dimension : 442 x 267 x 656mm
N.W : 28.3kg/pcs
Carton dimension : 495 x 345 x 775mm
G.W with carton : 34.7 kg（ include foldable clamp）
Flycase dimension : 730 x 575 x 850mm
G.W with fly case : 97.9kg (2 in 1)
OTHERS
IP rate : IP20
Working environment : -10℃~ 45℃
Maximum surface temperature of the lamp body : 80°C
Maximum lamp current : 9.6A/100V; 4.36A/220V
Optional accessories : FAST LOCK
APPROVALS
The product implementation standard : GB 7000.1-2015 GB7000. 217-2008
Approved certifications : CE、RoHs
The product complies with the following EU directives:
Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU
Color wheel+ CMY+CTO
Rotation Gobo
Gobo piece outer diameter φ22.9mm, gobo piece inner diameter φ15mm
