TH-351 Bright Protable Flat Focusable Led Fresnel For Photography

5 0 Reviews
1. 200W LED
2. 5600K
3. Die casting alum housing
4. LCD touch screen
5.Power Supply Brand: MEAN WELL
6. 5 and 4 Pins NEUTRIK
7. Zooming Scale: 20-55°
8. RDM / DMX
9. Frequency from 500 Hz ~ 25000 Hz
10. 4 kinds of dimmer curve: Standard mode, Incandescent mode, Quick mode and Linear mode.
Availability:
Quantity:
  • TH-351

  • The One Studio

  • 7052351

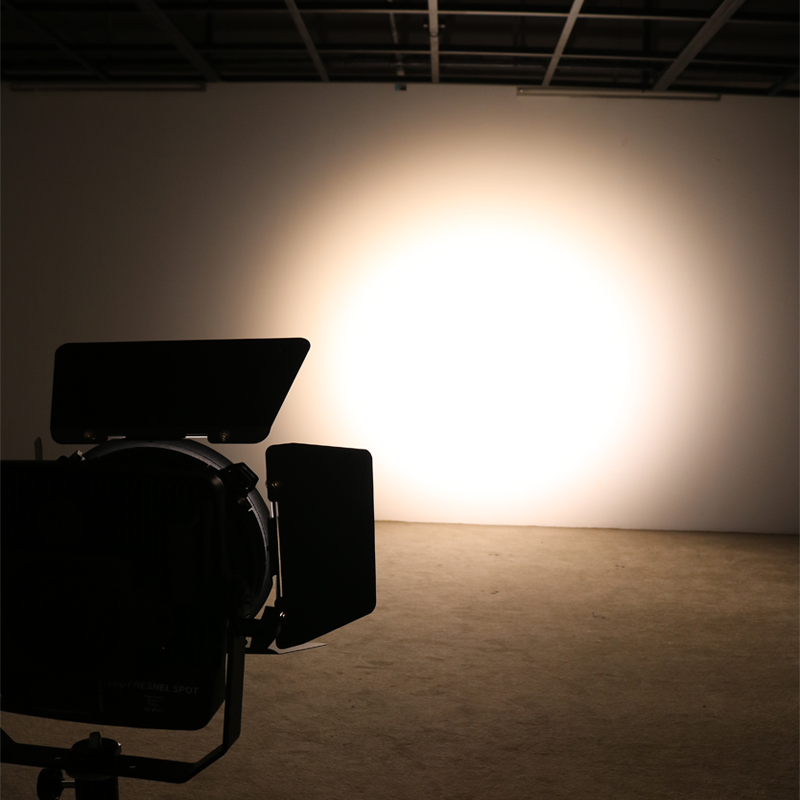

It's a brand new model of Focusable LED fresnel spotlight ! Thin, portability, flexbility, durability, and intelligent design.


This Flat Led Fresnel is a soft-edged spotlight with more control over beam angle than floods, but less control than profiles. It's from 20 ~55 degree. Go green and make a significant reduction in dimmer energy and air-conditioning power consumption.

The size of the beam of the protable fresnel spotlight can be adjusted by moving the lamp and reflector closer to or farther from the lens, by our designed of manual zoom function by the knob, by rotating the knob to change it.


You can accommodate barn doors for glare reduction and beam shaping. Selectable and smooth 16-bit dimming curves make it compatible with older, traditional theater compact daylight fresnel. Focusing is a breeze even without a board operator, thanks to manual overrides for zoom and dimming on the back of the unit. It is a perfect fit in theaters, studios or other environments that require smooth, even washes of light.


The lighting case is and made by the sturdy and durable die casting aluminum . We have model of 200W LED, producing an output similar to a 1000W lamp. For the display, before we using the button digital display on the products, but this item we using the touch screen, more convenient operation control products. There are 4 kinds of dimmer curve: Standard mode, Incandescent mode, Quick mode and Linear mode. The frequency from 500 Hz ~ 25000 Hz, and flicker-free on the camera, very suitable for all different kinds of event: stage, studio room, broadcast, museum and so on.


The color temperature of the focusable fresnel for photography produces the cool and warm color (3200 or 5600K) that looks just like natural sunlight and mimics the performance of tungsten fixtures. And the beam angle can be DMX adjusted between 20° and 55°. Their temperatures and tints can be tweaked to perfectly illuminate individual skin tones, so they look great in person and on camera. Both arrays output an incredible amount of lumens, for the brightest light in their respective color-temperature ranges.


The power supply is from 100~240V with PFC protect, can protect the power well, for the theater use, we choose a silent fan for cooling, it's very quiet and hardly to hear any voice.




Light Source:

LED POWER: 200W

LED Color: Single cool white(200W) COB LED

Led Lamp : Imported LED

Color Rendering Index(CRI): Ra≥90


Power supply:

Voltage: AC100-240V

Max.power: 200W

Power Supply Brand:MEAN WELL

XLR: 5 and 4 Pins NEUTRIK


Optics:

Dimmer: 0~100% linearly adjustable

Zooming Scale: 20-55°

LED Life Time: over 50,000 hours


Features:

Dimming Curve: 4 kinds

Dimming Frequency: 500HZ - 25000HZ optional

Strobe :1-25times/sec

Light body: Die casting Aluminum

Touch screen: LCD with touch screen


Control:

Control Mode: DMX/RDM

Control mode: DMX, Auto run and Master/Slave


DMX Channel:
1/2CH(single color)


Working Environment :

Environment Temperature: -10°C~40°C

Cooling system: No noise fan

IP Grade: IP20


Warranty time:

2Years time


Package :

Net weight: 9.5kgs

Gross weight: 11 kgs

Packing size: 42.5* 41*29 cm (1pc/carton)


Approvals:

CE,ETL,FCC,KC,BIS,RoHS
