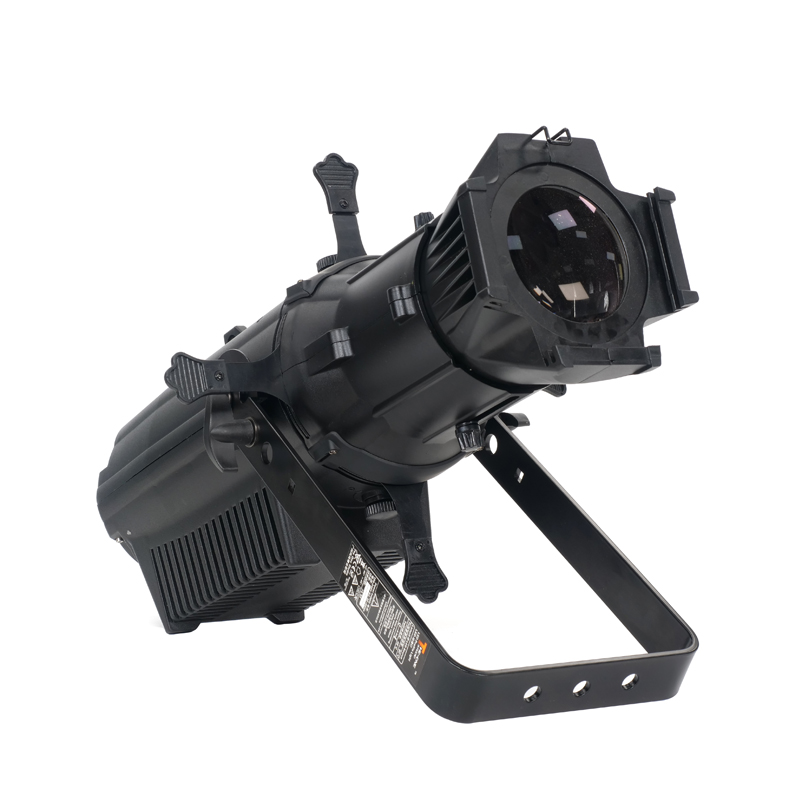

TH-345 Perfect Replacement Of Source Four Leko Spotlight For Theatre

5 0 Reviews
1. 200W/300W LED
2. 3200K/5600K/RGBW
3. Die casting alum housing
4. LCD touch screen
5. 19°/26°/36°/50° lens
6. RDM / DMX
7. The frequency from 500 Hz ~ 25000 Hz
8. 4 kinds of dimmer curve: Standard mode, Incandescent mode, Quick mode and Linear mode.
  • TH-345

  • The One Studio

  • 7052345

Perfect Replacement Of Source Four Leko Spotlight For Theatre

ellipsoidal lighting


• Low MOQ: It can meet your promotional business very well.

• Good Service: We treat clients as friend.

• Good Quality: Reliable material & tech from supplier. We have strict quality control system .Good reputation in the market.

This is our latest research and development of new modle led ellipsoidal light, this item using high quality fireproof aluminium die casting housing, with high grade appearance, sturdy and durable, corrosion-resistance and Oxidation resistance..

Ellipsoidal spotlight that ought to be in pictures. The lighting system was designed for the studio and other applications where high-definition lighting is a must. The color temperature produces the cool and warm color (3200 or 5600K), and the light that looks just like natural sunlight and mimics the performance of tungsten fixtures. Their temperatures and tints can be tweaked to perfectly illuminate individual skin tones, so they look great in person and on camera. Both arrays output an incredible amount of lumens, for the brightest light in their respective color-temperature ranges.

For the Display, before we using the button digital display on the products, but this item we using the touch screen, then more convenient operation control products. There are 4 kinds of dimmer curve: Standard mode, Incandescent mode, quick mode and linear mode. The frequency from 500 Hz ~ 25000 Hz, and flicker-free on the camera, very suitable for all different kinds of event: stage, studio room, broadcast, museum and so on.

The power supply is from 100~240V with PFC protect, can protect the power well, for the theatre use, we choose a better fan of Copper tube which is without any noise, it's very quiet and hardly to hear any voice

Light Source

LED POWER: 200W/300W

LED Color: RGBW 4in1(200W), CW or WW (200W/300W) COB LED

Led Lamp : Imported Led

Color Rendering Index(CRI): Ra≥90

Power supply

Voltage: AC100-240V

Max.power: 200W/300W


Fixed Lens: 19°/26°/36°/50°(optional)

LED Life Time: over 50,000 hours

Iris: optional


Dimming Curve: 4 kinds

Dimming Mode Frequency: 500HZ - 25000HZ optional

Strobe: 1-25times/sec

Focus: Can be adjusted by hand

Technology: High-quality optical system , glass reflector

Light body feature

Light body: Die Casting Aluminum

Body color: Black

Feature of housing: sturdy and durable,corrosion-resistance and Oxidation resistance.


Control Protocol: RDM / DMX

Control System: DMX, Auto run and Master/Slave

DMX Channels: 1/2CH(single color), 4/7(RGBW)

Working Environment

Working Temperature: -10~40℃

Cooling system: No noise fan (copper tube)

IP Grade: IP20

Warranty time

2 years warranty


Net Weight : 10.5kgs

Gross Weight: 12.5 kgs

Packing Size:72x33x31.5cm (1pc/carton)
