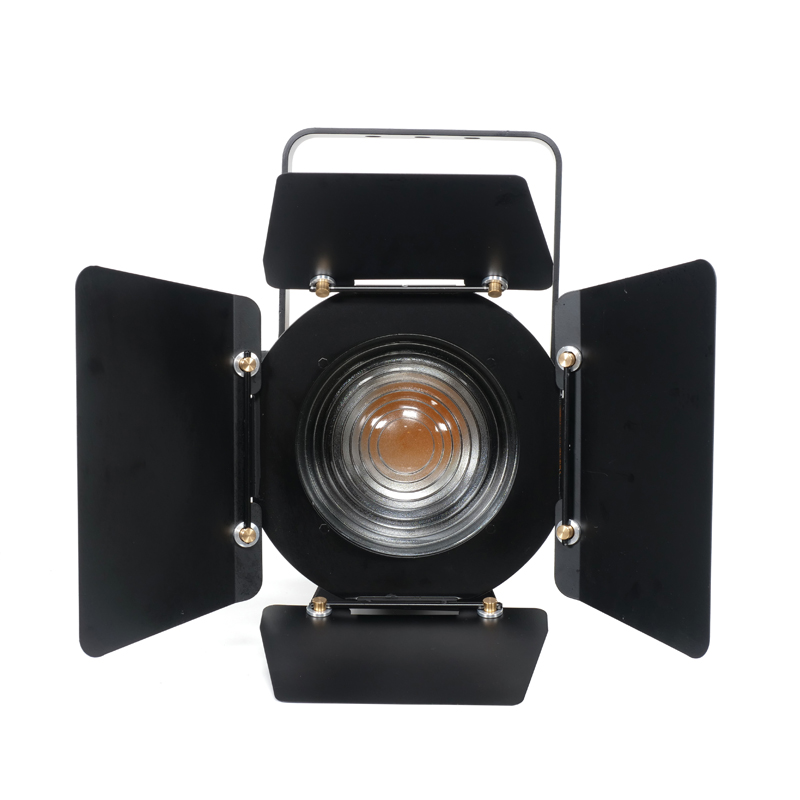

TH-340 High Power LED Fresnel Spotlight with Zoom for Photography

5 0 Reviews
1. 150W/200W/300W LED
2. Single WW or CW(150W/200W/300W),200W (2IN1/4IN1)
3. Aluminum Alloy
4. Beam angle: 15-50°
5. With zoom by manual/ Auto zoom
6. DMX 512
7. Cooling system : No noise fan of Pccooler
Availability:
Quantity:
  • TH-340

  • The One Studio

  • 7052340

High Power LED Fresnel Spotlight with Zoom for Photography

led fresnal spot

 Advantages:

> Low MOQ: It can meet your promotional business very well.
> Good Service: We treat clients as friend.

> Good Quality: Reliable material & tech from supplier. We have strict quality control system .Good reputation in the market.


The LED Fresnel Spotlight is a soft-edged spotlight with more control over beam angle than floods, but less control than profiles. It's from 15 ~50 degree. Go green and make a significant reduction in dimmer energy and air-conditioning power consumption.


The LED Fresnel Spotlight with zoom size of the beam can be adjusted by moving the lamp and reflector closer to or farther from the lens, by our designed of DMX or Manual zoom function, dont need to push the button on the light body, but can change zoom on controller. The beam can be shaped by the four barndoors attached to the front of the lantern.



Connections in and through as well as 3 and 5pin DMX on board only increases the flexibility of these workhorses. And can accommodate barn doors for glare reduction and beam shaping. Selectable and smooth 16-bit dimming curves make it compatible with older, traditional theater Fresnels. Focusing is a breeze even without a board operator, thanks to manual overrides for zoom and dimming on the back of the unit. It is a perfect fit in theaters, studios or other environments that require smooth, even washes of light.



The LED Fresnel Spotlight for photography case is made by the sturdy and durable aluminium alloy, with the 3pin and 5pin DMX connection, can be fixed different clients demand. And the lense is thread lens, make the light effect soft and bright. We have model of 150W/200W/300W LED, producing an output similar to a 750W or 1000W lamp. Control of the unit is facilitated via a 4 button menu and LCD display. The whole fixture is enclosed in a robust chassis, and is supplied with filter frame and barndoor.



High Power Spotlight color temperature produces the cool and warm color (3200 or 5600K), and the 2in1 version can be from 3200K to 5600K variable-white light that looks just like natural sunlight and mimics the performance of tungsten fixtures. And the beam angle can be DMX adjusted between 15° and 50°. LED Spotlight temperatures and tints can be tweaked to perfectly illuminate individual skin tones, so they look great in person and on camera. Both arrays output an incredible amount of lumens, for the brightest light in their respective color-temperature ranges.



High Power LED Fresnel Spotlight power supply is from 100~240V with PFC protect, can protect the power well, for the theater use, we choose a better fan of copper tube which is without any noise, it’s very quiet and hardly to hear any voice.



Light Source:
LED POWER: 150W/200W/300W
LED Color: CW+WW 2in1(200W), RGBW 4in1(200W), CW or WW (150W/200W/300W) COB LED
Led Lamp : Imported LED
Color Rendering Index(CRI): Ra≥90


Power supply:
Voltage: AC100-240V
Max.power: 150W/200W/300W


Optics:
Dimmer: 0~100% linearly adjustable
Zooming Scale: 15-50°
LED Life Time: over 50,000 hours


Features:
With DMX Auto zoom or Manual zoom
House Material: Aluminum alloy
House Color: Black


Control:
Control mode: DMX, Auto run and Master/Slave


DMX Channel:
DMX auto zoom: 2/5 CH (single color), 3/7 CH(2in1), 5/10 CH (RGBW)
Manual zoom: 1/3CH(single color), 2/5CH(2in1), 4/8CH(RGBW)


Working Environment :
Environment Temperature: -10°C~40°C
Cooling system: No noise fan (copper tube)
IP Grade: IP20


Warranty

2 years warranty


Package :
Net weight: 8.5 kgs
Gross weight: 11 kgs
Packing size: 58x32.5x32 cm


Approvals:

CE, ETL, FCC, KC, BIS, RoHS
